Product Lineup

TOP > Product Lineup

Search by workpiece sizesSearch by
workpiece
sizes

Search by chuck sizesSearch by
chuck
sizes

Compound machining modelsCompound
machining
models

Search from max. turning diameter (swing over bed)

※ About the "max. turning diameter" and "max. turning length"

The "max. turning diameter" and "max. turning length" are indicated in the following diagram as a guide to the size of the lathe.

Figure 1

Search from max. turning length (distance between centers)

※ About the "max. turning diameter" and "max. turning length"

The "max. turning diameter" and "max. turning length" are indicated in the following diagram as a guide to the size of the lathe.

Figure 1
T-Support System

Xseries

Cumulative production volume of 30,000 units. TAKAMAZ's standard single spindle lathe.

XT-8M [8 inch]
XT-8MY [8 inch]
XT-8 [8 inch]
XC-100 [6 inch]
XC-150 [8 inch]
XT-6/XT-6M [6 inch]
XL-200 [8 inch]
X-S700 [8 inch]

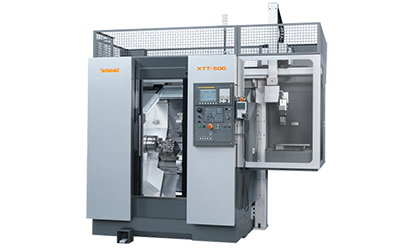

XTT-500/500M [8 inch]
X-120 [6 inch]

GSLseries

A simple machine that emphasizes the quality and cost performance of Japanese manufacture.

GSL-10H [6 inch]
GSL-15 PLUS [8 inch]

GANG TYPE series

Gang type precision lathe that has honed the essentials.

USL-480 [3 inch]
XG-4 [4 inch]
J-WAVE PLUS [4 inch]
TOP-TURN II [6 inch]
POLYGON MACHINE

XWseries

Simultaneous machining of both or the same sides of the parts for total complete process machining. The functions of two units within the space of a single unit.

XW-30 PLUS [3, 4 inch]
XW-60/60M [6 inch]
XW-130 [8 inch]
XW-130M [8 inch]
XW-200 [10 inch]
XWT-10 [10 inch]

XDseries

One spindle performs loading while the other is machining. Production rates doubled within the same space!

XD-8 PLUS [5 inch]
XD-10i [6, 8 inch]

XYseries

With two spindles and two turrets, different machining methods can be performed with case.Compound machining is possible resulting in short cycle time.

XYT-51 [6 inch]
XY-120 PLUS [6 inch]

XVseries

Next-generation mode of production realized with the inverted vertical lathe

XV-3 [3, 4 inch]

Automation System

Automation solutions to enable unattended operation and labor savings at production sites

T-Support System

Thermal displacement compensation and spindle condition monitoring systems for high-grade machining

THERMONY
SPIMONY
